DIGIARRAY

The best choice for DIGIEVER NVR to expand storage capacity

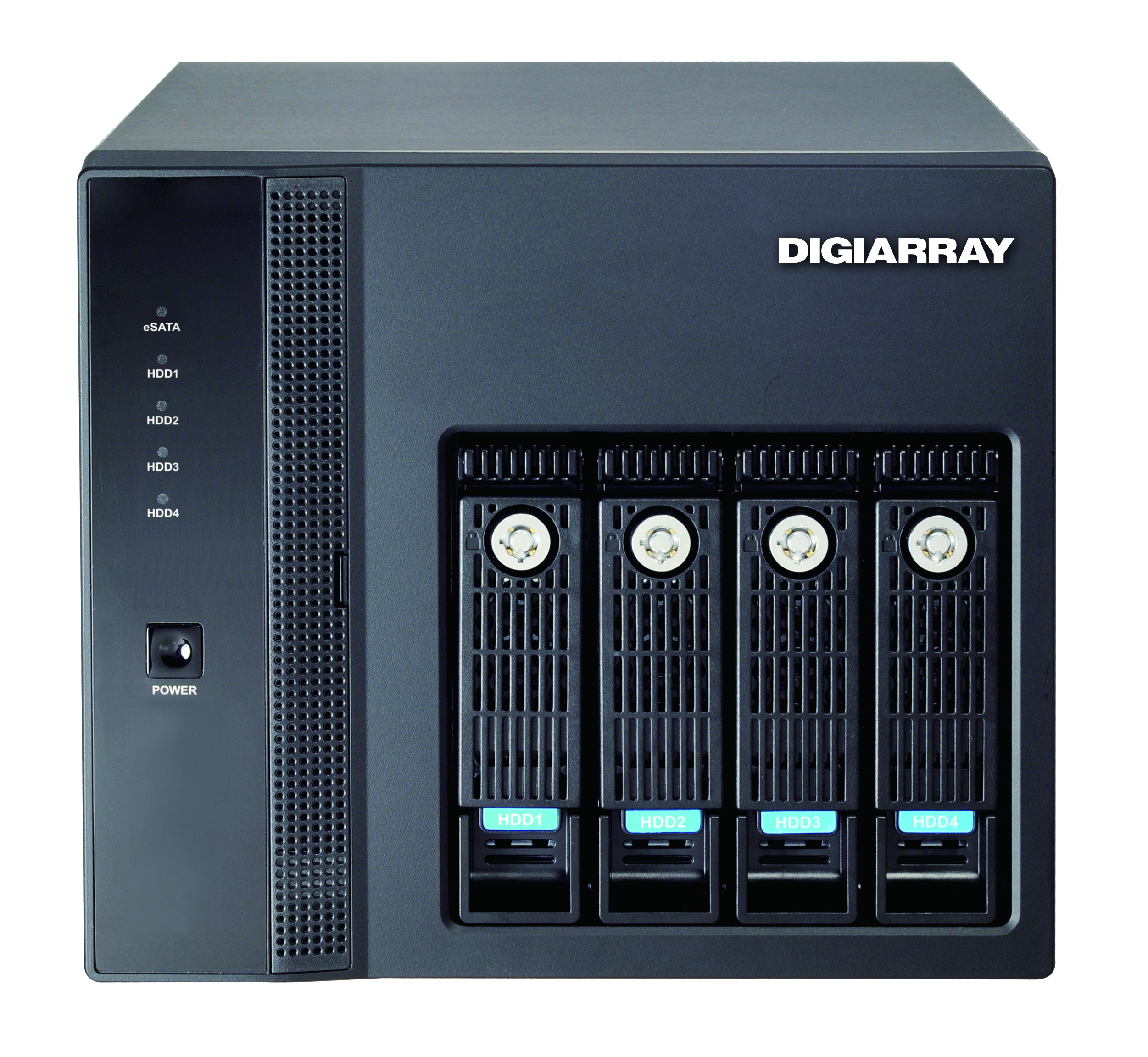

DIGIARRAY DA-4000E is an external storage expansion unit for DIGIEVER NVR series. It satisfies customers’ request of higher storage need. One DIGIEVER NVR can connect up to 2 DIGIARRAY units that can easily expend up to 8 HDDs and up to 128TB for recording files. With more storage, users can have more flexibility to optimize camera resolution, frame rates, image quality and record for a longer period of time.

Robust scalability up to 64TB
One DIGIARRAY can expand up to 64TB storage capacity with 4 hard disk trays. Each hard disk tray supports up to 16TB capacity. In addition, one DIGIAVER NVR can be connected up to 2 DIGIARRAY units and 8 HDDs in total.
HDD Tray 4
Storage Capacity per HDD Up to 16TB
Maximum Capacity Up to 64TB
Hot Swap Yes
Disk Management Linear(JBOD), RAID0, RAID1, RAID5, RAID10
RAID Algorithm Hardware RAID
LED Indicator eSATA, HDD1, HDD2, HDD3, HDD4
Port eSATA x1
Form Factor Tower
Alarm Buzzer System notification for power on, RAID setting and HDD error
Operation Environment

Temperature 0~40˚C/ 32~104°F
Humidity 0~95% R.H.
Power Supply

Input: AC100-240V ~,47-63HZ, 2.0A MAX.
Output: 19V/6.32A
Power Consumption Operation : 24~36 (4 Bay with 4 x 500GB HDD installed)
Fan 2 x cooling fan (4cm)
H/W Dimensions

184.94(H) x 205.3(W) x 245.8(D) mm
7.28(H) x 8.08(W) x 9.68(D) inch
Color Box Dimensions

317(H) x 250(W) x 303(D) mm

12.48(H) x 9.84(W) x 11.93(D) inch
Carton Dimensions

345(H) x 325(W) x 520(D) mm

13.58(H) x 12.80(W) x 20.47(D) inch
Color Box Shipping Weight

Net Weight(kg/PC):3.19

Gross Weight(kg/PC):4.67

Gross Weight(kg/CTN):9.32
  • AC Adapter
    AC Adapter
  • CD-ROM
    CD-ROM
  • Screw Bag
    Screw Bag
  • DA-4000E series
    DA-4000E series

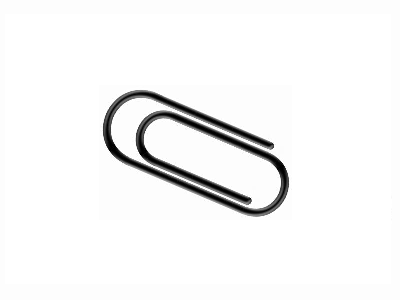

  • Paper Clip
    Paper Clip
  • eSATA Cable
    eSATA Cable
Multi-volume storage management
DIGIARRAY adopts multi-volume technology to create a whole new storage space for DIGIEVER NVR. Multi-volume storage management will combine all RAID units to DIGIEVER IP surveillance ecosystem, DIGIEVER NVR and DIGIARRAY, to efficiently reserve your important data.


Multi-volume offers an innovative way to easily expand your storage capacity without moving original recorded videos. DIGIARRAY is the most ideal solution to increase your storage capacity. Extending storage capacity via DIGIARRAY, NVR IP surveillance system can still operate as normal without any interruption of daily usual tasks.
DIGIARRAY is an individual system to store important videos. It is not necessary to use the same RAID type of NVR for DIGIARRAY. Users can build desired RAID type to specific DIGIARRAY for different purposes.
Rock-solid hardware RAID
DIGIARRAY is a safe, reliable and high speed external storage selection. Hardware RAID offers faster rebuilding performance to minimize the time to format/rebuild hard disks. LED indicator helps users to check HDD status and eSATA connection status. Built-in buzzer will alarm to inform that DIGIARRAY has encountered hardware. For instance, if RAID failures, the buzzer will alarm and LED indicator will turn to red light.
DIGIARRAY supports various RAID types, JBOD and RAID 0/1/5/10, allowing users to build suitable RAID types to protect against data loss and to improve the performance of read/write operation.
Three steps to configure desired RAID type. Expand your storage capability can never be so easy.

(1) Put HDDs into DIGIARRAY
(2) Configure desired RAID via dip switch on the back of DIGIARRAY
(3) Simultaneously press "reset button” and “power button” until there is a beep sound
Easy deployment with plug-and-play design
Hot swappable design allows users to replace a failed HDD without shutting down the system. This is indeed a convenient design to maintain usual tasks without disturbing surveillance system.
For emergent situation, all HDDs installed in DIGIARRAY are able to be removed from original DIGIARRAY to a new DIGIARRAY.
Easy expansion via eSATA interface
Without setting complicated network configuration, one eSATA cable can bridge DIGIARRAY and DIGIEVER NVR.
Via eSATA interface, DIGIARRAY ensures fast and efficient video read and write performance to solidly save recorded videos.
