DBS-8264-RM

29
Multi-NVR Video Backup Server

DBS-8264-RM is a true PC-less and 8-bay standalone video backup server, designed for DIGIEVER NVR that provides 64 channels of IP camera. Videos saved in Video Backup Server are able to be directly viewed and exported via playback page without installing extra software.

  • 8 BAY

    Hard Disk Drive

  • 64 CH

    Channels

Central Backup and Storage Capacity

  • Central Backup Configuration
  • -channel Video Backup from Multiple NVRs
  • Advanced Backup Schedule
  • 144TB High Storage Capacity
  • Flexible Storage Expansion Ability
  • Event Backup from DIGIEVER NVR: Video Clip and Snapshot



One Backup Server to satisfy crucial video backup needs without entering each NVR for video backup settings. You can save key videos from different models of DIGIEVER NVRs by freely defining backup schedule of each camera. In addition to its 144TB storage capacity, you can also expand extra  storage via iSCSI server. Finally, Backup Server can server as a FTP server that allows DIGIEVER NVR to upload event's video clip and snapshot as important event tracking evidence.




Playback and Double Backup

  • Directly Playback Video on Backup Server
  • Multi-server and Multi-channel Simultaneous Playback
  • 5 Modes of Smart Search
  • Intelligent Playback Features:
    • Region of interest(ROI), time-divided search and panomorph dewarp
  • Customized Watermark
  • Instant Export with Portable NVRPlayer
  • Double Backup to USB Storage Devices

You can easily view videos on both local monitor and remote PC without installing extra tool. Most convenienct is that Backup Server allows you to cross backup server and DIGIEVER NVR to check several videos at the same time. With intuitive playback design and intelligent features such as ROI(Region of interest) and ImmerVision Enables panomorph dewarp, you can quickly find the key videos and export them by adding your perfered text. Furthermore, Backup Server provides double backup to USB storage devices in order to solidly backup valuable videos for long-term storage purpose.



Remote Playback Anytime and Anywhere

You can aslo install DIGIMobileV2 on iOS and Android mobile device to view recorded video saved in Backup Server anytime and anywhere.

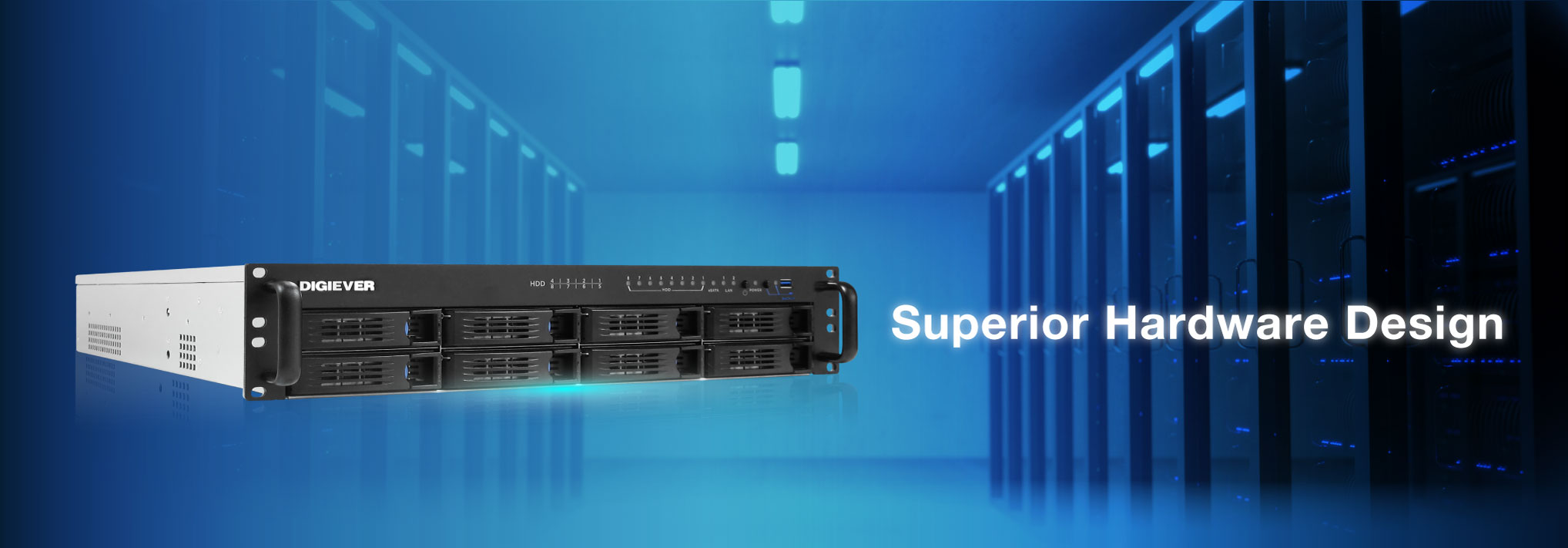

Superior Hardware Design

  • Complete RAID Levels
  • Hot swappable HDD design
  • S.M.A.R.T HDD Health Monitoring
  • Network Load Balance
  • Optional Redundant Power Supply



Backup Server features complete RAID levels, including RAID 0/1/5/6/10, to increase server reliability so as to protect crucial video data. Its hot swappable HDD design allows you to replace the failed HDD without turning off the server. Backup Server also offer S.M.A.R.T HDD health monitoring to prevent video loss from HDD failure in advance. To maximize bandwidth usability, you can utilize network load balance to boost video transfer speed.




Self-monitoring and Compatibility

  • Event & Action Management
  • Highly Integrated with UPS Device
  • Multi-language Support

Backup Server features smart self-monitoring to instantly inform you when videos are failed to backup from DIGIEVER NVRs. For unexpected electrical power lost, you can choose suitable UPS device to save important videos firmly and securely forunexpected electrical power lost. For global users, you can select your native language to intuitively set up the server and execute video playback.

  • CPU
  • Intel High Performance CPU

  • Memory

  • Storage Capacity per HDD
  • Up to 18TB

  • Storage Expansion Units (DIGIARRAY)
  • 2 Units

  • HDD Tray
  • 16 (NVR:8 + DIGIARRAY Storage Expansion Units: 8)

  • Maximum Capacity
  • Up to 272TB (NVR:144TB + DIGIARRAY Storage Expansion Units: 128TB)

  • LAN Port
  • 2 x 2.5 Gigabit RJ-45 Ethernet port

  • LED Indicators
  • HDD1, HDD2, HDD3, HDD4, HDD5, HDD6, HDD7, HDD8, LAN1, LAN2

  • USB Connector
  • Front: 2 x USB 3.2 Gen 1x1 for high speed video backup

    Back: 4 x USB 3.2 Gen 1x1 for supporting external pen drive, USB mouse/keyboard, USB UPS, USB speakers .etc.

  • Buttons
  • Power, USB backup

  • GPIO
  • 4 in, 4 out

  • Output Connector
  • HDMI 2.0a x2 (For local configuration)

  • Alarm Buzzer
  • System warning

  • Form Factor
  • Rack mount

  • Operation Environment
  • Temperature 0~40˚C

    Humidity 5~95% R.H.

  • Power Supply
  • Input: 100-240V AC, 50/ 60Hz

    Output: 300W

  • Power Consumption
  • Operation: 76~84 W

    (with 8 x 500GB HDD installed and in RAID 5 building process)

  • Fan
  • 3 x cooling fan (8cm)

  • H/ W Dimensions
  • 88.8 (H) x 430 (W) x 554 (D) mm
    3.49 (H) x 16.9 (W) x 21.8 (D) inch

  • Color Box Dimensions
  • 213 (H) x 742 (W) x 582 (D) mm

    8.4 (H) x 29.2 (W) x 22.9 (D) inch

  • Carton Dimensions
  • 245 (H) x 764 (W) x 602 (D) mm
    9.6 (H) x 30 (W) x 23.7 (D) inch

  • Color Box Shipping Weight
  • Net Weight(kg/PC): 11.98

    Gross Weight(kg/PC): 13.98

    Gross Weight(kg/CTN): 13.98

  • Video Backup
  • Supported Channel
  • Up to
  • Video Format
  • AVI format
  • File Format
  • MJPEG/ MPEG-4/ H.264/ MxPEG (Depending on the camera models)
  • Video Type
  • Normal and Event
  • Video Backup Schedule
  • Yes, Define by camera channel
  • Automatic Recycle
  • (1) Max. days of each camera (2) Total capacity percentage
  • Disk Management
  • Linear (JBOD), RAID 0/1/5/6/10
  • S.M.A.R.T HDD Health Monitoring
  • Yes
  • Remote Playback
  • Multi-channel Playback
  • 1/4/5/9/16-channel simultaneous playback
  • Multi-server Playback
  • Up to 16 channels from multiple backup servers and DIGIEVER NVRs
  • Search Mode
  • Date, time, channel, video type
  • Control
  • Rewind, Slow motion, Fast forward, Frame by Frame Playback
  • Camera Dewarp
  • Yes, ImmerVision Enables and VIVOTEK
  • Region of Interest(ROI)
  • Monitor 5 or 7 regional images from a high-resolution camera
  • Time-divided Search
  • Divide a video into many snapshots and display the first frame of that period of time on each channel
  • Snapshot
  • Yes
  • Export
  • Yes, including instant export while playback
  • Multi Web Browsers Support
  • Microsoft Edge, Chrome, Fireforx, Opera for configuration
  • iOS and Android Support
  • Yes, for single view playback
  • Local Playback
  • Multi-channel Playback
  • 1/4/5/9/16-channel simultaneous playback
  • Search Mode
  • Date, time, channel, video type
  • Camera Dewarp
  • Yes
  • Snapshot
  • Yes
  • Export
  • Yes, to external USB storage device
  • Playback via USB Device
  • Yes, exported from DIGIEVER NVR/DIGIEVER Backup server
  • Event & Action Management
  • Event Type
  • Up to 16 Event Configurations:

    (1) Server Events: connection lost, UPS low power warning, storage threshold warning, abnormal shutdown, external event (HTTP-in), built-in digital input

    (2) Storage Events: RAID degraded, RAID failed, RAID rebuilding

    (3) Hardware Events: CPU temperature, CPU fan, system fan, HDD error, HDD fail, redundant power supply failure

  • Action Type
  • Up to 7 Actions for Event:

    E-Mail notification, SMS, buzzer alarm, SNMP trap, stack light, user-defined action and built-in digital output

  • Security Management
  • User Privilege Management
  • User can be assigned for different levels of privilege
  • Auto Logout
  • Auto logout idle time limit from configuration page
  • Reboot Auto Access
  • Yes, for unstable electric environment
  • Log System
  • Hardware log, System log, event log, current user log, historical user log and file access log
  • Two LAN Port Applications
  • Yes, including share IP, separated IP and link aggregation
  • Operating System
  • Linux-embedded system
  • Network Service
  • Protocol Support
  • HTTP/HTTPS, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, SMTP
  • File Sharing Service
  • Windows networking, FTP service
  • Built-in Servers
  • Built-in DHCP/NTP server
  • Remote PC Requirements
  • Operating System
  • Microsoft® Windows® 10/11

  • CPU
  • Intel® i7 CPU or above

  • Memory
  • 16G or above
  • Browser
  • Microsoft® Edge 44.18362.387.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above

  • Suggested Switch Requirement
  • Switch
  • Gigabit switch is highly recommended
  • *Note: Please contact DIGIEVER sales to know more integrated information.
    • DIGIEVER Backup Server
      DIGIEVER Backup Server
    • Screw Bag
      Screw Bag
    • Ethernet Cable
      Ethernet Cable
    • Power Cord
      Power Cord
    • All designs and specifications are subject to change without prior notice.
