• VD-0036

    VD-0036

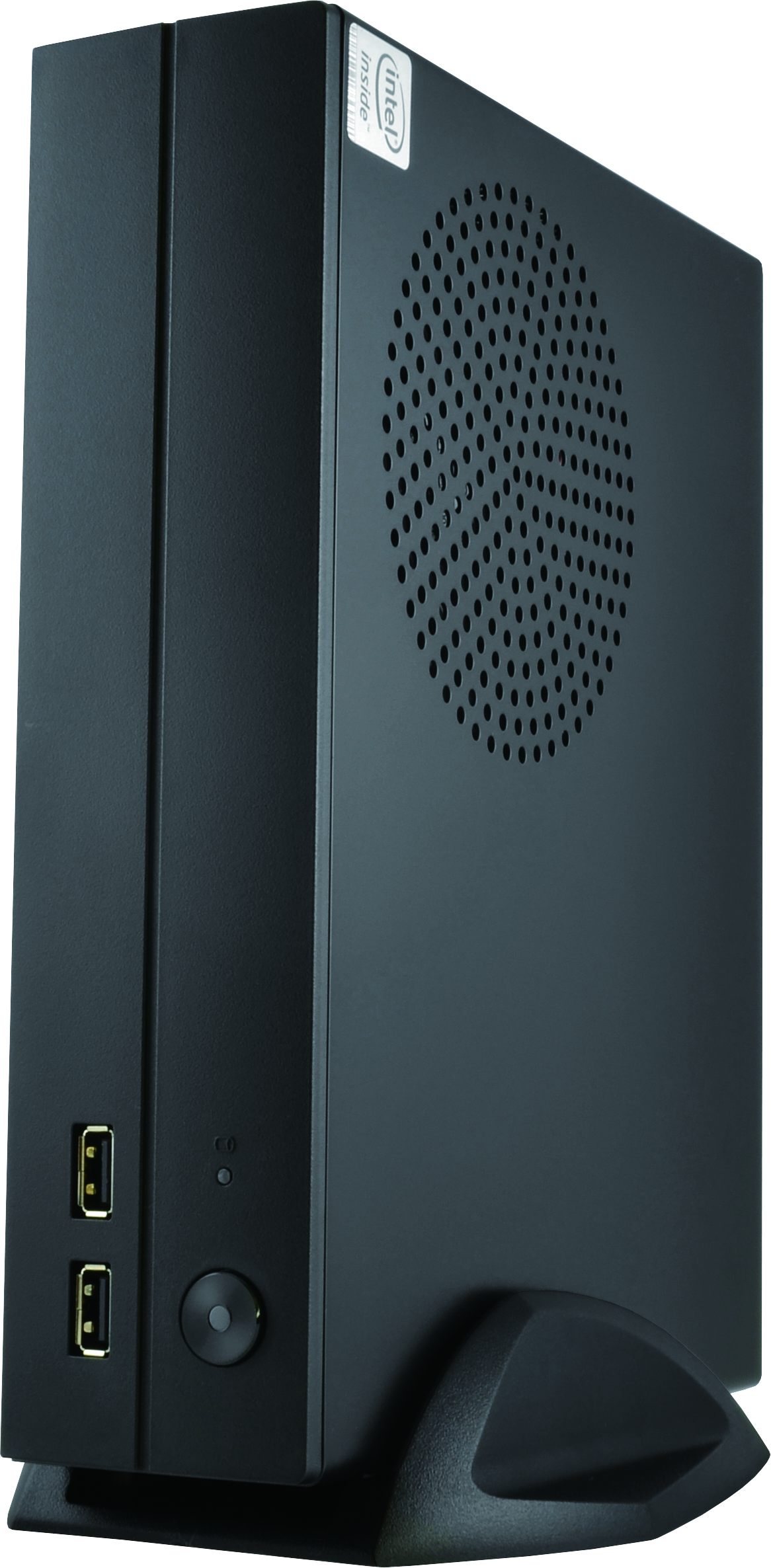

    The World's First 4K Ultra HD Hardware Decode Linux-embedded Video Decoder

    DIGIEVER Video Wall Decoder is a high performance video wall decoder solution for users to monitor up to 36 channels local display with superb 4K Ultra HD hardware decode performance.

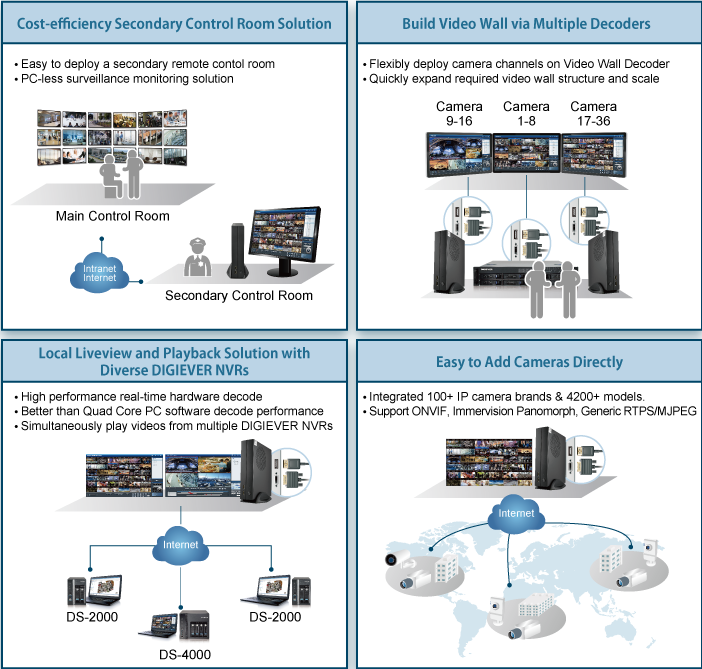

DIGIEVER Video Wall Decoder is the world’s first 4K UHD hardware decode Linux-embedded video decoder offering a high performance video wall decoder solution. Users can monitor up to 36 channel real-time liveview on local display via HDMI and DVI-I connectors. DIGIEVER Video Wall Decoder offers four models, VD-0025, VD-0036, VD-0049 and VD-0064, with different supported channels to satisfy video surveillance requirements in diverse applications such as control rooms and stadiums.




Superb 4K UHD Local Display

● Perform 8 megapixel (4K UHD) IP cameras with hardware decode
● Mirror/Dual Display via HDMI/DVI-I
● Support Immervision panomorph dewarping engine
● Support 60FPS IP camera
● Up to 36 channels high performance real-time hardware decoder
● Dual-stream optimization for better video quality

Powered by high performance Intel Dual Core CPU, DIGIEVER Video Wall Decoder is the world’s first Linux-embedded video wall decoder to perform 4K UHD IP cameras giving user the smallest detail to solidly guard your secure area. With cutting-edge hardware decode technology. DIGIEVER Video Wall Decoder features dual-stream optimization for different display modes to optimize display performance and to adjust bandwidth loading. For multi-monitor surveillance requirements, user can make use of HDMI and DVI-I video output to display two monitors in two different areas without installing extra PC.

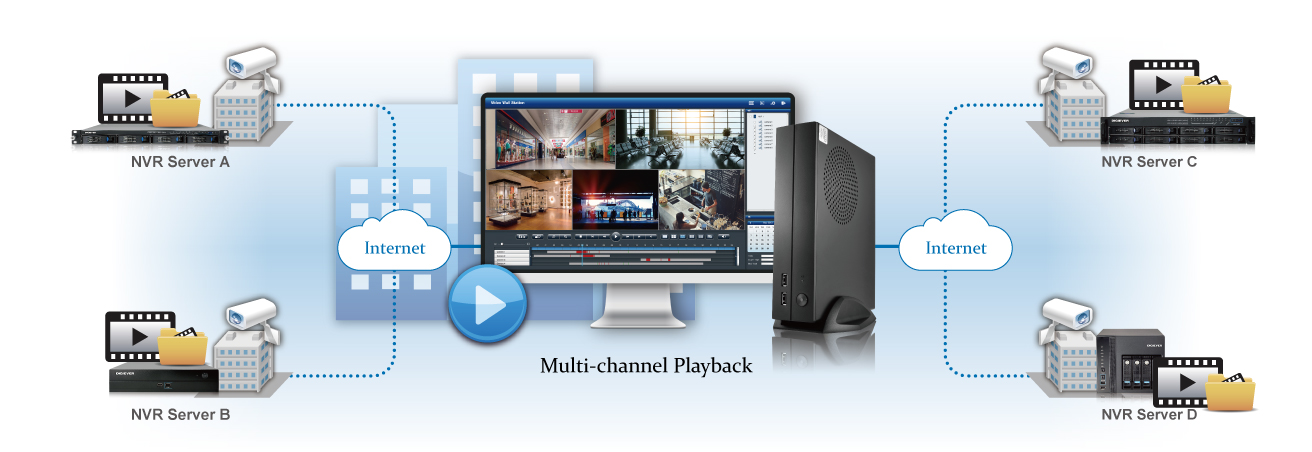

Multi-channel Playback

● 4-channel simultaneous playback from DIGIEVER NVRs
● Playback speed control to shorten video tracking time
● Intuitive thumbnail preview

Video playback is an important way for video surveillance to track real event situation. DIGIEVER Video Wall Decoder features 4-channel simultaneous playback to let entry level security personnel assist in figuring out event situation in order to minimize the injury, loss or damage.

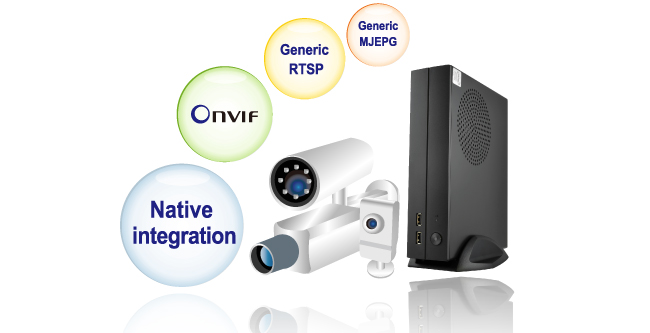

Comprehensive Compatible Capability

●Support over 100 IP camera brands and more than 4200 IP cameras
●Support ONVIF / Generic RTSP & MJPEG

DIGIEVER Video Wall Decoder is fully integrated with DIGIEVER NVR and has high compatible ability with IP cameras, which allows users to easily select suitable IP cameras for different projects and applications. Moreover, DIGIEVER Video Wall Decoder also supports other standard video streaming formats such as ONVIF, Generic RTSP and Generic MJPEG to quickly build suitable video surveillance environment.


User-friendly Design

● Trouble-free installation in 4 Steps
● Quickly add NVR and camera via UPnP search
● PC-less operation with USB type keyboard and mouse
● Support 25 languages
● Smart control via remote controller (Optional)

The user interface and operation design is based on that of DIGIEVER NVR, so users can quickly start operating DIGIEVER Video Wall Decoder with zero learning curve. Four steps, less than 3 minutes, the setting of camera, system, network environment and date/time can be easily set up. Besides, users can also use optional remote controller to remotely control and manage your region without the restriction of mouse and keyboard. Furthermore, DIGIEVER Video Wall Decoder supports 24 language versions to break the limitation of language and nations.


Smart and Reliable System

● Reliable Linux-embedded system
● Complete log information
● Flexible user privilege management

● Save/Load configuration file via USB dongle/PC

DIGIEVER Video Wall Decoder adopts Linux-embedded operating system with high reliability and power saving features. DIGIEVER Video Wall Decoder is your best choice to save your money on power bill. As for user privilege management, administer can create users and power users to assign suitable surveillance privilege to ensure the safety of your region. Furthermore, completer log information provides users a quick overview to understand system status so as to maintain and manage surveillance system. Finally, Video Wall Decoder also allows installers to save configured configuration file to USB device or on your remote PC so that they can efficiently load the configuration file to other Video Wall Decoders.
  • Memory
  • 2GB DDRIII memory

    lGB Flash (DOM)

  • LAN Port
  • 1 x Gigabit RJ-45 Ethernet port

  • LED Indicators
  • Power

  • USB Connector
  • USB 3.0 x 2

    USB 2.0 x 4

  • eSATA
  • 1 x eSATA port (Reserved)

  • Buttons
  • Power

  • Output Connector
  • HDMI x1/DVI-I x1

  • Form Factor
  • Compact desktop

  • Operation Environment
  • Temperature 0~45˚C

    Humidity 0~95% R.H.

  • Power Supply
  • External power adaptor, 90W

    Input :19VDC, 4.74A

  • Power Consumption
  • Operation: 38.5W~45W

  • H/ W Dimensions
  • 250(H) x 58.5(W) x 192(D) mm

    9.84(H) x 2.3 (W) x 7.56(D) inch

  • Color Box Dimensions
  • 141(H) x 327(W) x 301(D) mm

    5.55(H) x 12.87(W) x 11.85(D) inch

  • Carton Dimensions
  • 317(H) x 360(W) x 326(D) mm

    124.8(H) x 141.73(W) x 128.35(D) inch

  • Color Box Shipping Weight
  • Net Weight(kg/PC):1.71

    Gross Weight(kg/PC):2.97

    Gross Weight(kg/CTN):5.93

  • Local Display
  • Max. Channel Support
  • 36
  • Display Mode
  • 1/3/4/5/8/9/10/12/16/20/25/30/36/42/49/56/64 & 5+1/12+1-channel & sequential and full screen display modes.

  • Max. Resolution Support
  • Resolution up to 8MP (4K UHD) per channel
  • Max. FPS in Single Page
  • 4K UHD/ 4MP:200FPS/ Full HD:480FPS/ HD:720FPS/ D1/CIF:1000FPS
  • Max. FPS per Channel
  • 60
  • Display Capability
  • Dual Display (display different liveview display modes on two monitors), Mirror Display (display same liveview display mode on two monitors)
  • Monitoring Control
  • PTZ control, digital zoom, optical zoom, full screen display, video snapshot and preset position

  • System Configuration
  • Yes, local and remote PC configuration
  • Display Streams from NVR Relay
  • Yes, multi-client monitor design
  • Audio Support
  • Yes
  • Camera Dewarp
  • Yes
  • Multi-channel Playback
  • Display Mode
  • Single/ Quad Display mode
  • Playback Control
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame By Frame
  • Security Management
  • User Privilege Management
  • User can be assigned for different levels of privilege

  • Log System
  • Hardware log, System log, current user log and historical user log

  • Access Control
  • Specify IP address or network segment for the white and black list

  • Operating System
  • Linux-embedded system

  • Network Service
  • Protocol Support
  • HTTP, HTTPS, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, NTP
  • Suggested PC Requirement
  • Operating System
  • Microsoft® Windows® Vista/ 7 / 8 (32 and 64-bit)

  • Browser
  • Microsoft® Internet Explorer 8.0 or above, Firefox 25 or above, Safari5.1.7 or above

  • Suggested Switch Requirement
  • Switch
  • Gigabit switch is highly recommended

  • Remote Controller Features (optional)
  • Remote Controller
  • Support display mode, PTZ control, sequential, log, snapshot, option, live view, Configuration, mouse & keyboard.
    • VD-0000
      VD-0000
    •  Power adaptor
      Power adaptor
    • Power Cord
      Power Cord
    • Stand
      Stand
    • CD-ROM
      CD-ROM
    • Remoter Controller (Optional)
      Remoter Controller (Optional)
    • All designs and specifications are subject to change without prior notice.
    • VD-0000
      VD-0000
    • Stand
      Stand
    •  Power adaptor
      Power adaptor
    • Remoter Controller (Optional)
      Remoter Controller (Optional)
    • All designs and specifications are subject to change without prior notice.
