< Faq Lists

FAQ

How to enable Metadata for VIVOTEK AI cameras?

After firmware version 78-2, DIGIEVER supports AI Search (Metadata) on Playback for Key Attributes and Diverse AI-Events from integraged AI cameras. To perform AI Search (Metadata) for VIVOTEK AI cameras, please enable both metadata and event on cameras’ UI in advance:

*DIGIEVER supports VIVOTEK AI cameras:
CD9381-HNTV, CD9381-HNVF2, FD9187-HT-V3, FD9365-EHTV-v2, FD9383-HTV, FD9383-HV, FD9387-EHTV-V3,
FD9391-EHTV-v2, FE9382-EHV-v2, FE9391-EHV-v2, IB9365-EHTV-v2, IB9383-HTV, IB9383-HV, IB9387-EHTV-V3,
IB9391-EHTV-v2, IP9165-HT-v2, IP9165-LPC-v2, IP9181-HT-v2, IP9181-LPC-v2, IP9191-HT-v2, IP9191-LPC-v2, SD9161-H-v2, SD9368-EHL, SD9384-EHL, SD9394-EHL
More models will be added soon.

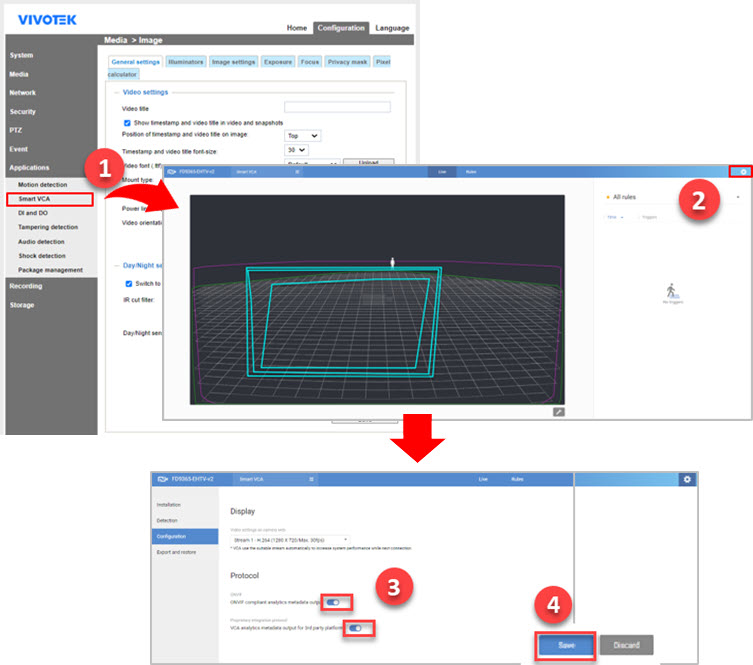

1. Go to VIVOTEK camera web configuration page > Application > Smart VCA

1.1 Select Smart VCA

1.2 Select on pop-up window

1.3 Enable Protocol:

• ONVIF compliant analytics metadata output
• VCAanalytics metadata output for 3rd party platform

1.4 Press Save to apply the changes

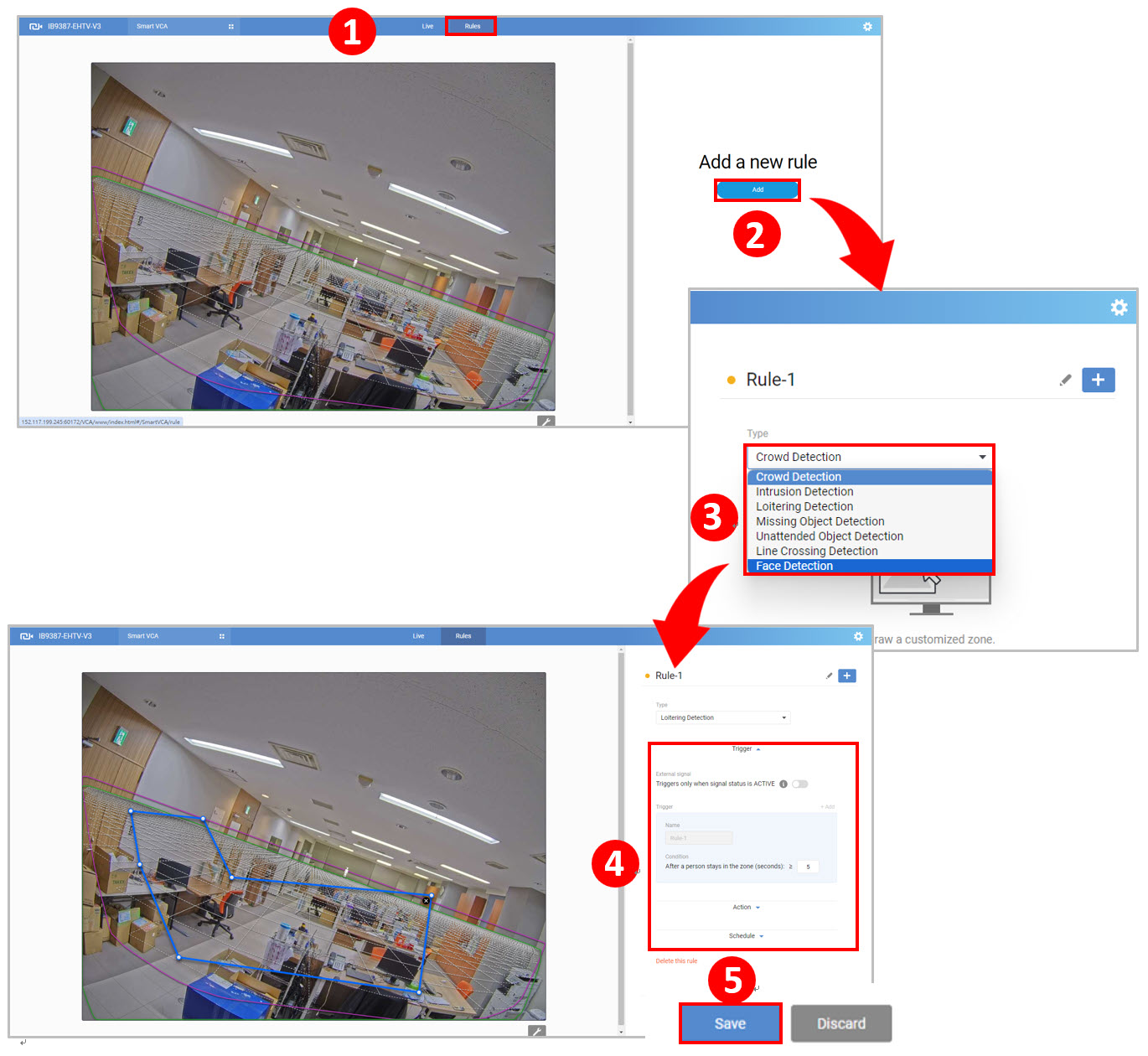

2. Setup event function

2.1 Go to Rules page

2.2 Click Add to add a new rule

2.3 Select Event Type

2.4 Complete event parameter setup

2.5 Press Save to apply the changes
