< Faq Lists

FAQ

How to enable Metadata for AXIS AI cameras?

After firmware version 78-2, DIGIEVER supports AI Search (Metadata) on Playback for Key Attributes and Diverse AI-Events from integraged AI cameras.  To perform AI Search (Metadata) for AXIS AI cameras, please enable both metadata and event on cameras’ UI in advance:



Note:
Before enabling metadata and events, please:
1. Set the NVR as the camera's NTP server to keep the time synchronized between the NVR and the camera.  Please follow below steps:

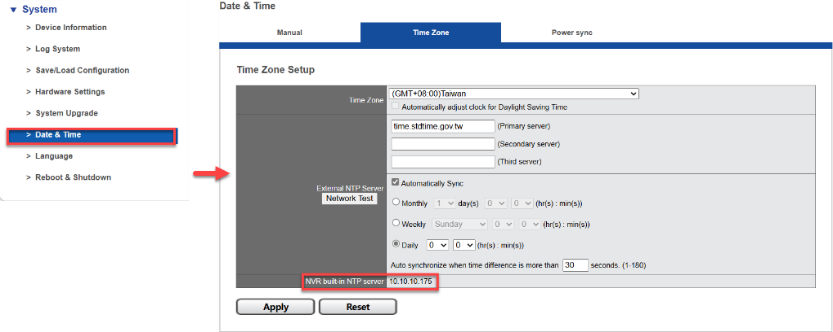

1.1 Log in NVR > Date & Time > Time Zone: The IP address of the "NVR's built-in NTP server" can be used as the camera's NTP server.



1.2 Log in Camera > System > Time and location > Select "Automatic date and time (manual NTP servers" > Enter the IP address of the "NVR's built-in NTP server"



2. Disable Zipstream features of the camera.  Please follow below steps:

2.1 Log in Camera

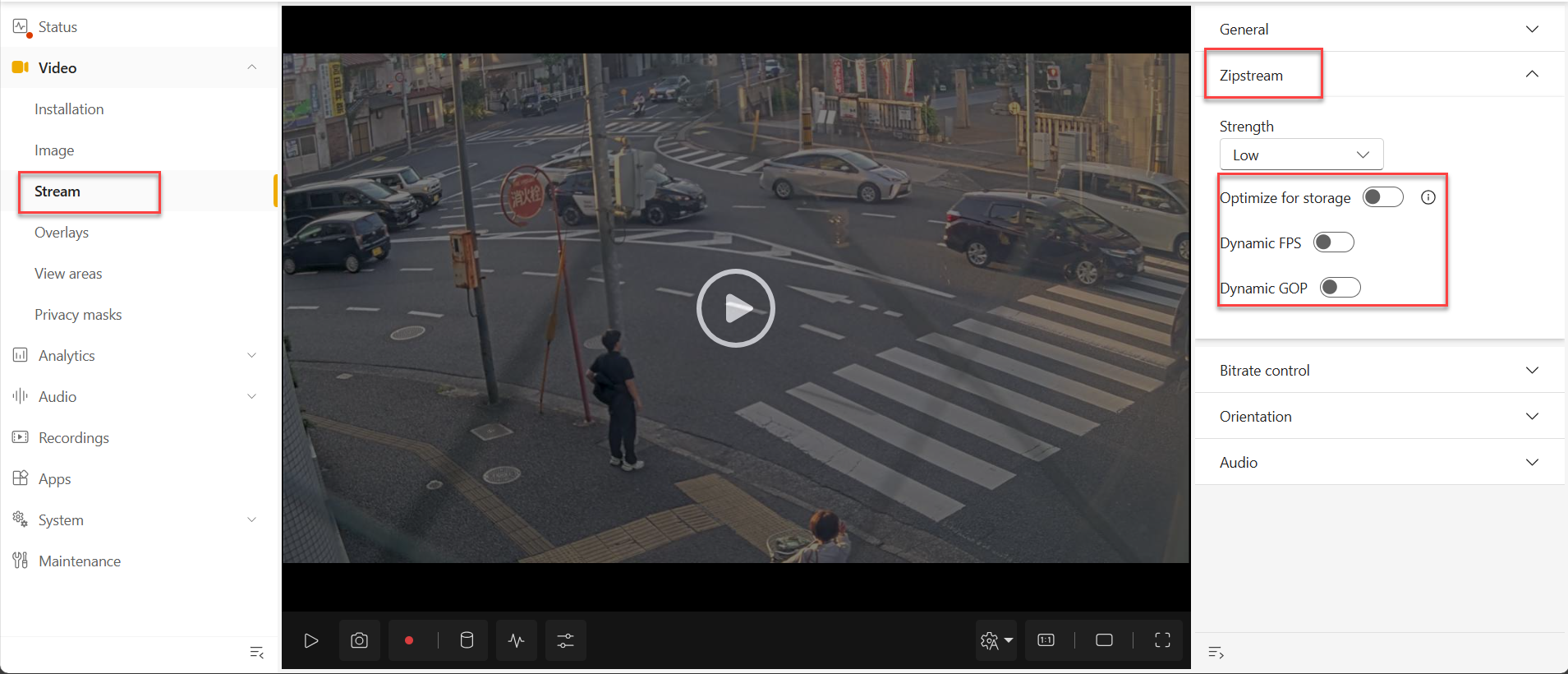

2.2 Go to Video > Stream > Zipstream > Disable a) Optimize for storage b) Dynamic FPS c) Dynamic GOP



1. Attributes

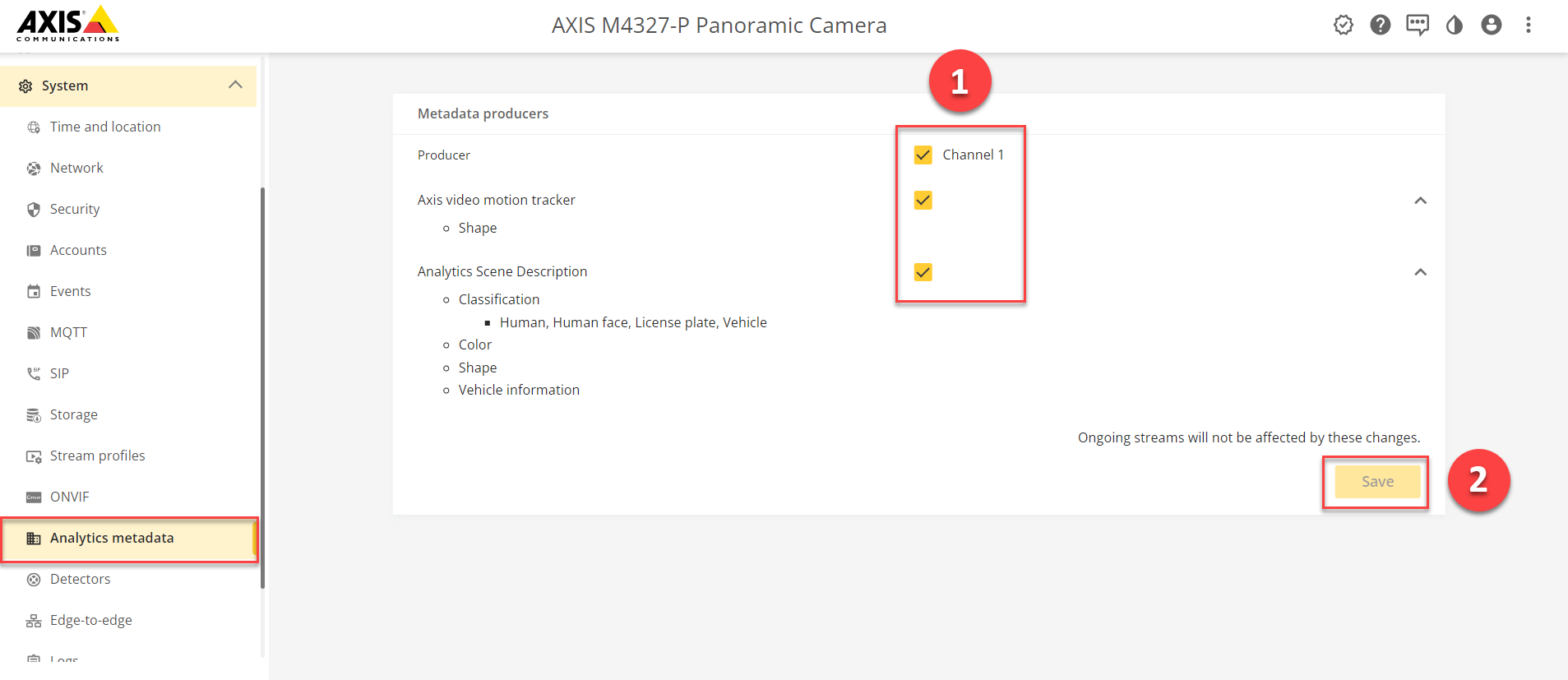

Go to Camera web configuration page > System > Analytics metadata



1.1 Enable Metadata producers:
• Producer
• Axis video motion tracker
• Analytics Scene Description



1.2 Press Save


2. AI-Events

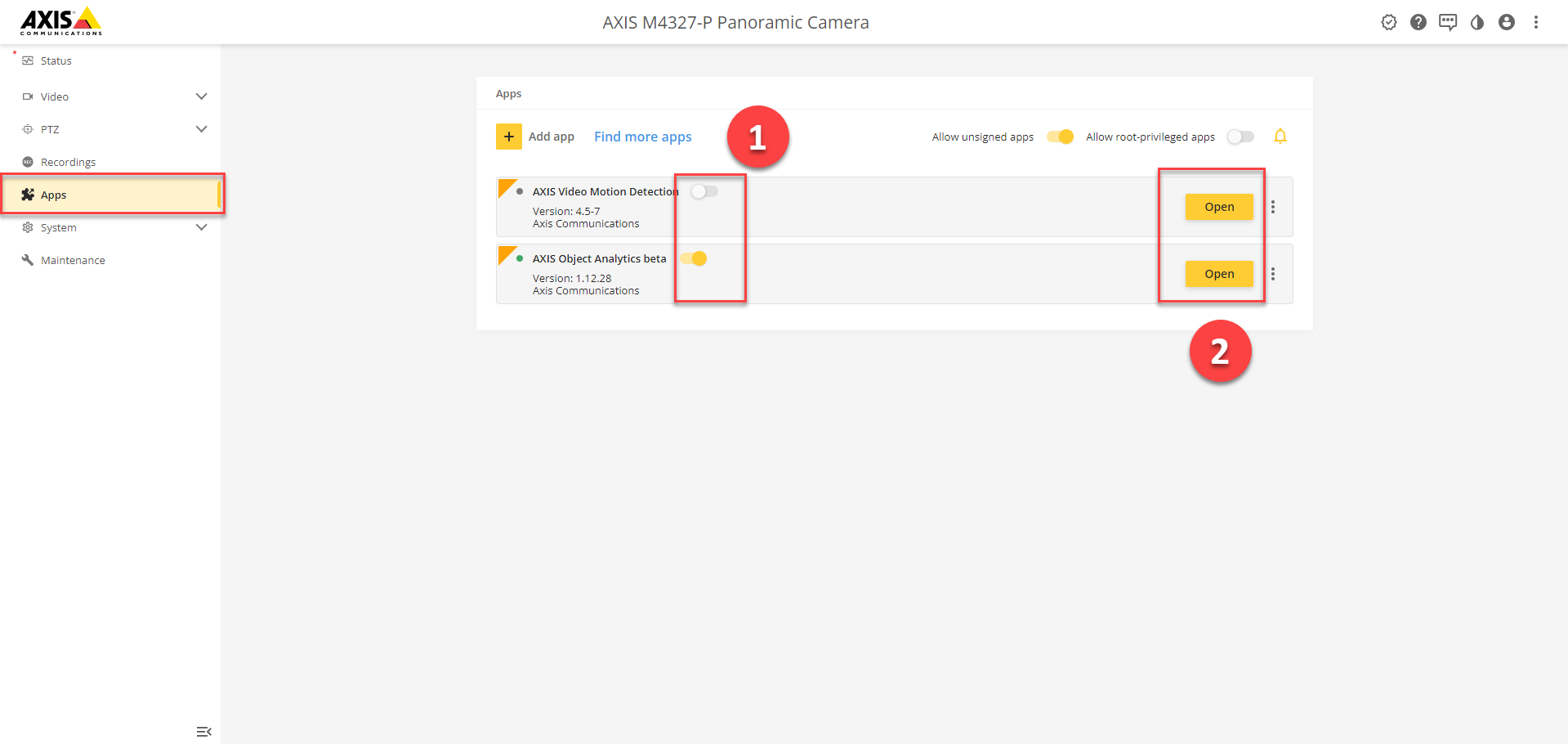

Go to AXIS camera web configuration page > Apps



2.1 Enable desired event

2.2 Click Open for further settings
