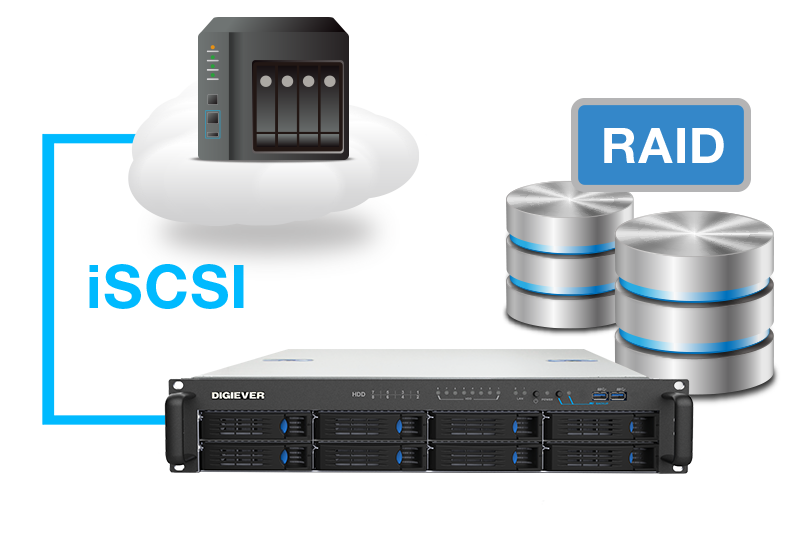

Linux-embedded iSCSI Storage Expansion Server for DIGIEVER NVR

IDS-T8000-RM is a 8-bay standalone iSCSI server designed to expand the storage capacity to many DIGIEVER NVRs. Its Mult-RAID design allows you to flexibly define different RAID levels based on the importance of video.

  • 8 BAY

    Hard Disk Drive

N+M iSCSI Storage Expansion Architecture

  • Cost-effective Storage Expansion Platform
  • Achieve the Highest Storage Utilization


DIGIEVER iSCSI Server is an ideal video storage expansion solution for DIGIEVER NVR, especially for large-scale surveillance projects and long-term storage needs. One iSCSI Server can be assigned for multiple DIGIEVER NVRs (up to 5 NVRs) for video storage expansion.


Multi-RAID Storage Management

  • Multi-RAID Design
  • Fully Utilize HDD Storage
  • Optimized Fault Tolerance Ability
  • Fast and Reliable Storage Expansion for DIGIEVER NVR

iSCSI Server allows you to flexibly define different RAID levels based on the importance of video. By means of the flexibility of RAID combination, Multi-RAID design can optimize fault tolerance ability to increase the tolerable numbers of HDD failure. Via iSCSI Server, you can create extra new RAID volume in few minutes without stopping current recording task.


Remarkable Storage Capability

  • 272TB High Storage Capacity with DIGIARRAY
  • Extra Storage Expansion Ability
  • Diverse RAID Levels
  • S.M.A.R.T HDD Health Monitoring

IDS-T8000-RM supports up to 144TB storage capacity for long-term video storage. It can connect up to 2 DIGIARRAY, storage expansion unit, to expand extra 128TB storage capacity with total 272TB storage capacity. iSCSI Server features diverse RAID levels, including RAID 0/1/5/6/10, to increase server reliability so as to protect crucial video data. iSCSI Server also offers S.M.A.R.T HDD health monitoring to prevent video loss from HDD failure in advance.


Superior Hardware Design

  • Hot Swappable HDD Design
  • Highly Integrated with UPS Device
  • Optional Redundant Power Supply


Its hot swappable HDD design allows you to replace the failed HDD without turning off the server. For unexpected electrical power lost, you can choose suitable UPS device to save important videos firmly and securely for unexpected electrical power lost. iSCSI Server is also equipped with redundant power supply as an option to ensure the operation of DIGIEVER IP surveillance eco-system works sound and safe. If one fails, the other power supply starts running to keep iSCSI Server powered up.

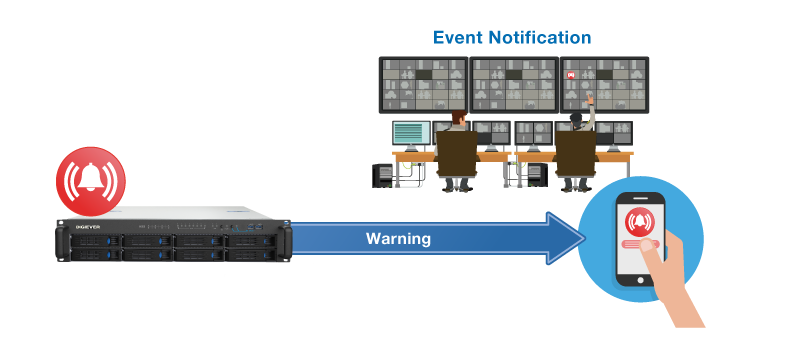

Network Capability and Self-Monitoring

  • Diverse Network Applications
  • Smart Self-Monitoring and Instant Notification

iSCSI Server is equipped with two LAN ports for diverse network applications to maximize network efficiency and to increase bandwidth stability. iSCSI Server features smart self-monitoring to instantly notify you that it is unable to record videos, such as internet connection lost or RAID failed.


  • CPU
  • Intel High Performance CPU

  • Memory
  • 4 GB Flash (DOM)
    GB DDR 4 memory
  • Storage Capacity per HDD
  • Up to 18TB

  • Storage Expansion Units (DIGIARRAY)
  • 2 Units

  • HDD Tray
  • 16 (Server:8 + DIGIARRAY Storage Expansion Units: 8)

  • Maximum Capacity
  • Up to 272TB (Server:144TB + DIGIARRAY Storage Expansion Units: 128TB)

  • LAN Port
  • 2 x 2.5 Gigabit RJ-45 Ethernet port

  • LED Indicators
  • HDD1, HDD2, HDD3, HDD4, HDD5, HDD6, HDD7, HDD8, LAN1, LAN2

  • USB Connector
  • Front: 2 x USB 3.2 Gen 1x1

    Back: 4 x USB 3.2 Gen 1x1

  • Buttons
  • Power, USB backup(reserve)

  • Video Output Connector
  • HDMI 2.0a x 2 (for local display)

  • Alarm Buzzer
  • System warning

  • Form Factor
  • Rack mount

  • Operation Environment
  • Temperature 0~45˚C

    Humidity 5~95% R.H.

  • Power Supply
  • Input: 100-240V AC, 50/ 60Hz

    Output: 300W

  • Power Consumption
  • Operation: 76~84 W

    (with 8 x 500GB HDD installed in RAID 5 building process)

  • Fan
  • 3 x cooling fan (8cm)

  • H/ W Dimensions
  • 88.8 (H) x 430 (W) x 554 (D) mm
    3.49 (H) x 16.9 (W) x 21.8 (D) inch

  • Color Box Dimensions
  • 213 (H) x 742 (W) x 582 (D) mm

    8.4 (H) x 29.2 (W) x 22.9 (D) inch

  • Carton Dimensions
  • 245 (H) x 764 (W) x 602 (D) mm
    9.6 (H) x 30 (W) x 23.7 (D) inch

  • Color Box Shipping Weight
  • Net Weight(kg/PC):11.98

    Gross Weight(kg/PC):13.98

    Gross Weight(kg/CTN):13.98

  • Storage Ability
  • iSCSI Storage Device
  • Up to 5 devices for DIGIEVER NVR
  • Multi-RAID Numbers
  • Up to 2
  • Maximum RAID Numbers
  • Up to 4 with DIGIARRAY
  • Disk Management
  • Linear(JBOD), RAID0/ 1/ 5/ 6/ 10
  • S.M.A.R.T HDD Health Monitoring
  • Yes
  • Event & Action Management
  • Event
  • (1) Server Events: Internet connection lost, UPS low power warning, abnormal shutdown, built-in digital input

    (2) Storage Events: RAID Degraded / Failed / Rebuilding

    (3) Hardware Events: CPU temperature, CPU fan, system fan, HDD error, HDD failed, eSATA connection lost, battery low warning, redundant power supply failure

  • Action
  • E-Mail notification, SMS, buzzer alarm, SNMP trap, stack light, User Defined Action(HTTP out), built-in digital output
  • Network Service
  • Two LAN Port Applications
  • Share IP, Separated IP
  • Protocol
  • *Note: Please contact DIGIEVER sales to know more integrated information.
    • DIGIEVER iSCSI Server
      DIGIEVER iSCSI Server
    • Screw Bag
      Screw Bag
    • Ethernet Cable
      Ethernet Cable
    • CD-ROM
    • Power Cord
      Power Cord
    • All designs and specifications are subject to change without prior notice.
