VD-0036 UHD+ New Product

The World’s First 4K Hardware Decode, 4K Display and Linux-embedded Video Wall Station

VD-0036 UHD+ allows you to easily build video wall as secondary control room to solidly guard your region in crystal-clear 4K UHD (3840 x 2160) display resolution with H.264 IP cameras.

  • 36 CH



DIGIEVER Video Wall Station is the world first 4K hardware decode, 4K display and H.264 supported Linux-embedded video wall station that allows users to easily build video wall as secondary control room to solidly guard your region in crystal-clear 4K UHD (3840 x 2160) display resolution with H.264 IP cameras. Users can monitor up to 36 channels liveview on local display via HDMI 2.0 video output without installing extra computer. In addition, its dual HDMI solution lets you monitor two monitors in either same display mode (Mirror Display) or different display modes (Dual Display). Once security personnels notice event notification from highlight video window and video pop-out window on liveview page, they can quickly check event situation via multi-channel video playback, which can largely minimize the injury, loss or damage.


Superb 4K Hardware Decode & 4K Local Display

  • Support 4K UHD/ Full HD/ XGA display
  • Support up to 12 megapixel IP camera
  • Up to 36-CH real-time liveview performance
  • Support 60FPS IP camera monitoring
  • Dual-stream optimization for better video quality

DIGIEVER Video Wall Station UHD+ series is the next-generation video wall station allowing you to easily build security monitoring room by delivering crystal-clear images captured from IP cameras. With cutting-edge hardware decode technology, VD UHD+ series performs excellent display ability that supports 12 megapixel IP camera and offers up to 4K UHD display ability. For rapid and continuous moving object application, DIGIEVER Video Wall Station is your best choice to help you check each moment for identification. Besides, It features dual-stream optimization for different display modes to optimize display performance and to minimize bandwidth loading.

Versatile Monitoring Plans with Group Layouts

  • Two main layout modes: Default layout and Group layout
  • Support up to 20 group layouts in dual display mode
  • Liveview setting: Group Layout overview from PC
  • Intuitive switch between group layouts with ease

DIGIEVER Video Wall Station's Group Layout  offers advanced customization capabilities, allowing users to customize multiple layouts tailored to diverse monitoring requirements. Group layouts facilitates seamlessly switching between different areas or floors, significantly improving security efficiency for security personnel.
The system supports two main layout modes:
Default layout: Users can customize one display plan for default layout.
Group layout: Users can create up to 20 group layouts in dual display mode, enabling swift transitions between different monitoring areas.
Group layout also features “Liveview setting” for system administrators. Administrator can remotely oversee comprehensive information for each group layout from a PC, including screen allocation for each layout, camera channel sequence on liveview and the ability to rename group layouts for easy recognition during monitoring.

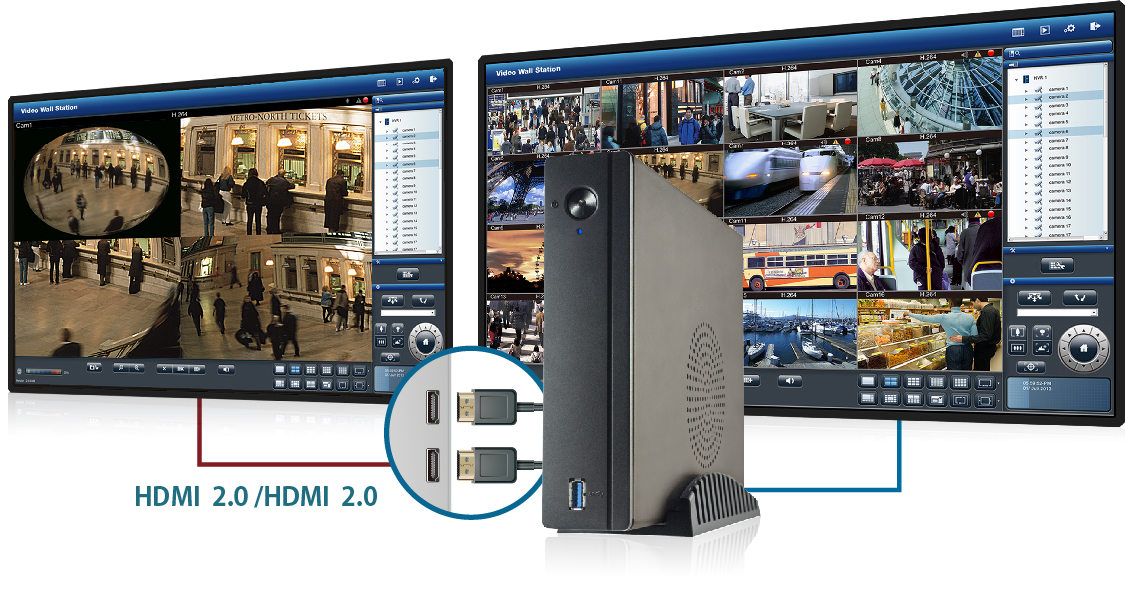

Marvelous PC-less Solution

  • Mirror display: Monitor same liveview display mode on two monitors (default)
  • Dual display: Monitor different liveview display modes on two monitors with crystal-clear experience

DIGIEVER Video Wall Station is equipped with dual HDMI solution for multi-monitor surveillance requirements. You can view crystal-clear video from HDMI 2.0 video output. In addition, its dual HDMI solution is an ideal surveillance station for you to deploy monitoring center without installing extra PC. You can monitor two monitors either in same or different display modes.

Intuitive Event Notication

  • Single & Quattro video pop-out window event notification
  • Highlight video window

DIGIEVER Video Wall Station features Single and Quattro video pop-out window when an event is triggered from NVR. Users can simultaneously check up to 4 camera spots for multi-site event tracking when an event is triggered.

Flexible User-defined On-screen Display & Pointer

  • OSD Settings: Information, Size, Position, and Color
  • Pointer Settings: Size, Color, and Speed

Users can freely define on-screen disply including information (camera name, time zone, and time), size (small, middle, and large), position (top left/right corner or bottom left/right corner), and color (black/white) to check camera and time information via OSD (on-screen display), and have a clear and suitable pointer including size (large, middle, and small in default), color (black/white), and speed (in 10 levels) to operate Video Wall Station for diverse distance of monitor.

Multi-channel Playback

  • 5-channel simultaneous playback from DIGIEVER NVRs
  • Intuitive playback design
  • Video export to external USB device and playback on remote PC (with NRPlayer utility)

Video playback is an important way for video surveillance to track real event situation. DIGIEVER Video Wall Station features 5-channel simultaneous playback to let entry level security personnel assist in figuring out event situation in order to minimize the injury, loss or damage.

Comprehensive Compatible Capability

  • Support H.264/ MJPEG/ M-PEG4/ MxPEG video compression standard
  • Support hundreds of camera brands and thousands of camera models
  • Support ONVIF Profile / Generic RTSP & MJPEG

DIGIEVER Video Wall Station features high compatibility with IP cameras , which supports the lasted compresstion standard and is compatible to hundreds of IP camera brands and thousands of camera models. DIGIEVER Video Wall Station also supports Onvif protocol and genereic RTSP/ MJPEG to let you easily add IP cameras.

User-friendly Interface Design

  • Quick configuration in 4 steps
  • Smart group adding: Quickly add NVR or camera
  • PC-less operation with USB type keyboard and mouse
  • NVR recording icon design
  • Support 25 languages
  • Convenient remote controller (via app DIGIMobileV2 ver.3.0.17 or above version)

The user interface and operation design is based on that of DIGIEVER NVR, so users can quickly start operating DIGIEVER Video Wall Station with zero learning curve. Four steps, less than 10 minutes, the setting of camera, system, network environment and date/time can be easily set up.
Smart group adding lets you intuitively add cameras from DIGIEVER NVR or directly from IP cameras. The NVR recording icon provides instant feedback which helps users promptly identify the recording status of the NVR. Besides, users can also use optional remote controller to remotely control and manage your region without the restriction of mouse and keyboard. Furthermore, DIGIEVER Video Wall Station supports up to 25 language versions to break the limitation of language and nations.

Advanced and Reliable Security System

  • Reliable Linux operating system
  • Detail log information
  • Flexible user privilege management
  • Save/Load configuration file via USB dongle/PC

DIGIEVER Video Wall Station adopts Linux-embedded operating system with high reliability and power saving features. DIGIEVER Video Wall Station is your best choice to save your money on power bill. As for user privilege management, administer can create users and power users to assign suitable surveillance privilege to ensure the safety of your region. Furthermore, completer log information provides users a quick overview to understand system status so as to maintain and manage surveillance system. Finally, Video Wall Station also allows installers to save configured configuration file to USB device or on your remote PC so that they can efficiently load the configuration file to other Video Wall Stations.


DIGIEVER Video Wall Station for Diverse Applications

With its powerful local liveview and playback ability, DIGIEVER Video Wall Station can be used in many scenarios for different applications that makes the deployment of video monitoring become simple and easy. There are 4 solutions of Videal Wall Statoin that is able to satisfy your local monitoring requirements.

  • Memory
  • 8GB Flash (EMMC)

    2GB DDR4 memory

  • LAN Port
  • 2.5 Gigabit RJ-45 Ethernet port x 2

  • LED Indicators
  • Power

  • USB Connector
  • Front: 1 x USB 3.2 Gen 1x1
    Rear: 2 x USB 3.2 Gen 1x1

  • Buttons
  • Power

  • Output Connector
  • HDMI 2.0 x 2

  • Form Factor
  • Compact desktop

  • Operation Environment
  • Temperature 0~40˚C (32˚F~104˚F)

    Humidity 0~95% R.H.

  • Power Supply
  • External power adaptor, 65W

    Input power voltage: 100V to 240V AC

  • Power Consumption
  • Operation: 13.8W~20W

  • H/ W Dimensions
  • 177 (H) x 44 (W) x 219 (D) mm

    6.96 (H) x 1.73 (W) x 8.62 (D) inch

  • Color Box Dimensions
  • 141 (H) x 327 (W) x 301 (D) mm

    5.55 (H) x 12.87 (W) x11.85 (D) inch

  • Carton Dimensions
  • 317 (H) x 360 (W) x 326 (D) mm

    124.8 (H) x 141.73 (W) x 128.35 (D) inch

  • Color Box Shipping Weight
  • Net Weight (kg/PC): 1.71

    Gross Weight (kg/PC): 2.97

    Gross Weight (kg/CTN): 5.93

  • Local Display
  • Max. Channel Support
  • Display Mode
  • 1/3/4/5/8/9/10/12/16/20/25/30/36 & 5+1/12+1-channel & sequential and full screen display modes

  • Max. Resolution Support
  • Resolution up to 12 megapixel (H.265 & H.264)
  • Local Display Resolution
  • (1) HDMI 2.0 display port (HDMI①):
         3840 x 2160 (4K UHD), 1920 x 1080 (Full HD), 1024 x 768 (XGA)

    (2) HDMI 2.0 display port (HDMI②):
         1920 x 1080 (Full HD), 1024 x 768 (XGA)&

  • H/W Decode Max. FPS in Single Page
  • (1) In 3840 x 2160 (4K) Display:
         4K (8MP): 120 FPS, Full HD: 360 FPS, CIF: 1080 FPS

    (2) In 1920 x 1080 (Full HD) Display:
         4K (8MP): 120 FPS, Full HD: 480 FPS, CIF: 1080 FPS

  • Max. FPS per Channel
  • 60FPS
  • Layout Mode
  • Default layout, Group layout
  • Advanced Display
  • (1) Dual Display: display different liveview display modes on two monitors (Full HD display)

    (2) Mirror Display: display same liveview display mode on two monitors (Full HD/XGA display)

  • Monitoring Control
  • PTZ control, digital zoom, optical zoom, full screen display, video snapshot and preset position

  • System Configuration
  • Yes, local and remote PC configuration
  • Display Streams from NVR Relay
  • Yes, when camera is added from NVR
  • Audio Support
  • Yes
  • Camera Dewarp
  • Yes
  • Event Notification
  • Yes, when camera is added from NVR (video pop-out window and highlight video window)
  • Multi-channel Playback
  • Display Mode
  • Single/ Quad Display mode
  • Playback Control
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame By Frame
  • Security Management
  • User Privilege Management
  • User can be assigned for different levels of privilege

  • Log System
  • Hardware log, System log, current user log and historical user log

  • Access Control
  • Specify IP address or network segment for the white and black list

  • Operating System
  • Linux-embedded system

  • Network Service
  • Protocol Support
  • Suggested PC Requirement
  • Operating System
  • Microsoft® Windows® 10/11

  • Browser
  • Microsoft® Edge 44.18362.387.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above
  • Suggested Switch Requirement
  • Switch
  • Gigabit switch is highly recommended

  • Remote Controller Features(via DIGIMobileV2 ver.3.0.17 or later)
  • Remote Controller
  • Support display mode, full screen, digital zoom in/out, mute/sound, PTZ control, sequential, snapshot, live view
    • VD UHD+ Series
      VD UHD+ Series
    • Stand
    •  Power adaptor
      Power adaptor
    • Ethernet Cable
      Ethernet Cable
    • Power Cord
      Power Cord
    • CD-ROM
    • All designs and specifications are subject to change without prior notice.
    • VD UHD+ Series
      VD UHD+ Series
    • Stand
    •  Power adaptor
      Power adaptor
    • All designs and specifications are subject to change without prior notice.
